• Support 58mm/80mm paper width printing
• Fast firmware upgraded online
• Fast printing speed up to 300mm/s

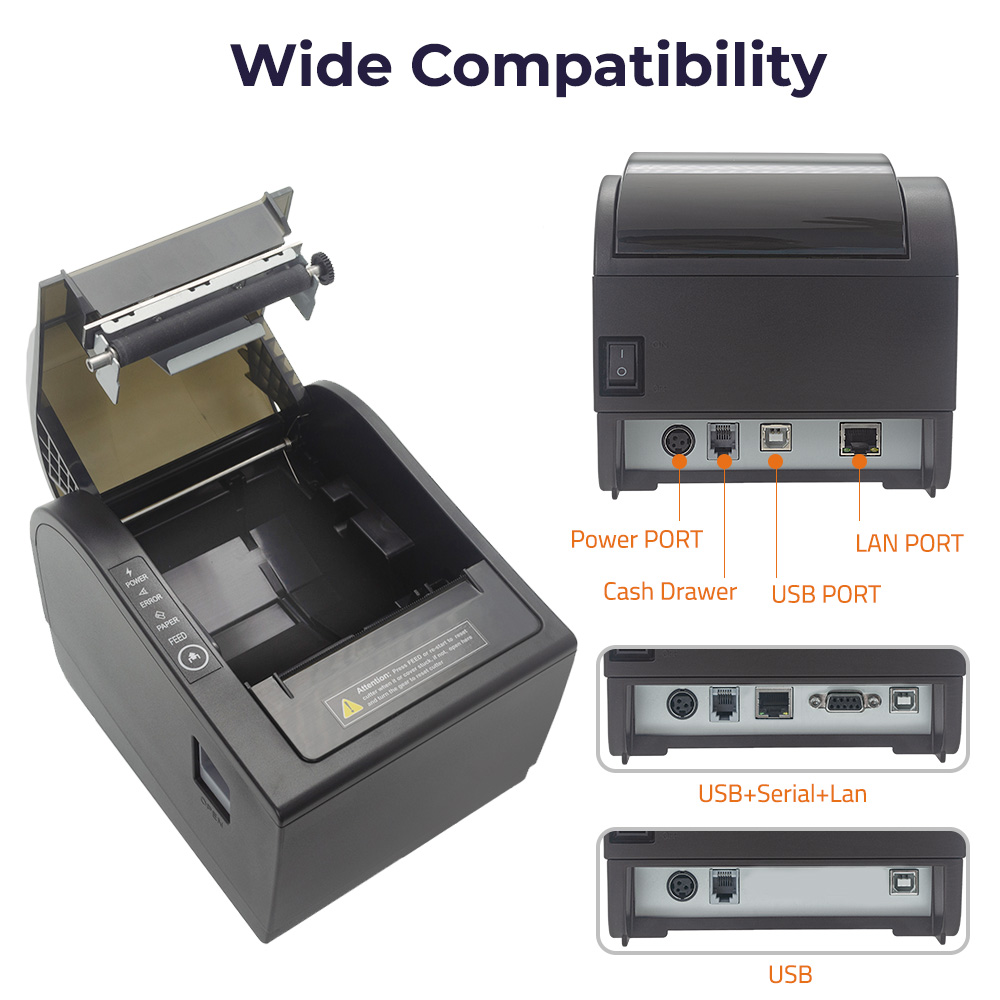

• Multiple interfaces

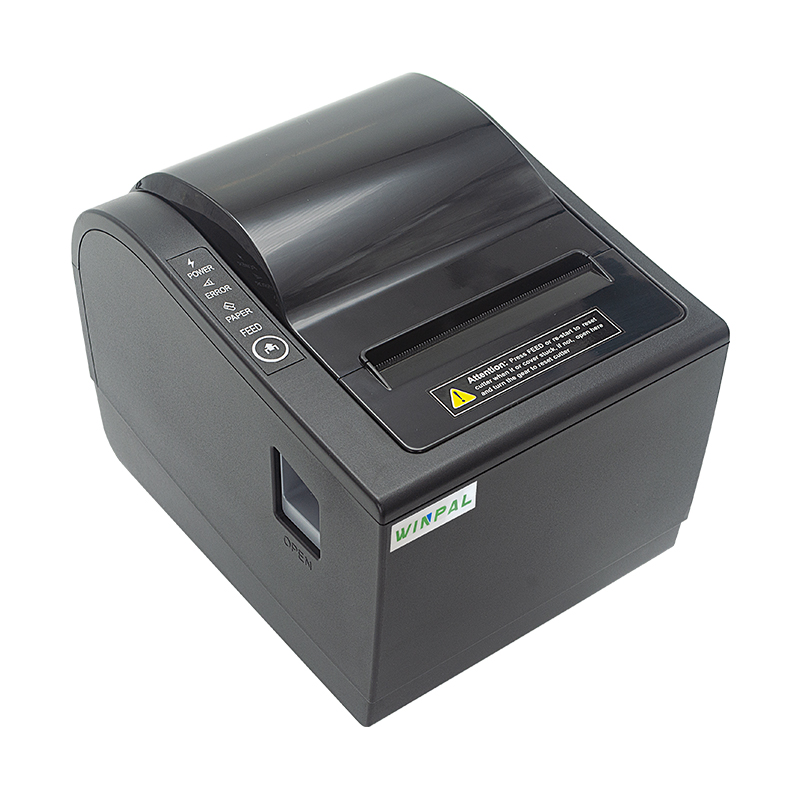

Model WP-A1 | |||||
Printing speed | 230 mm/s | 260 mm/s | 300 mm/s | ||
Interface | USB/LAN/USB+Serial/USB+LAN (Optional: Bluetooth; WIFI) | USB+Serial+LAN (Optional: Bluetooth; WIFI) | |||
Paper width | 80mm | ||||
Print width | 72mm | ||||
Print command | ESC/POS | ||||
Column number | 80mm paper:FontA-42 columns or 48 columns/ Font B-56 columns or 64 columns/ Chinese, traditional Chinese -21 columns or 24 columns | ||||
Character size | ANK, FontA:12×24 dots Font B: 9×17 dots Simplified/Traditional Chinese: 24×24 dots | ||||
Graphics | Monochrome BMP and other image files can be downloaded to FLASH | ||||
Cutter | |||||
Auto cutter | Partial | ||||
Barcode Character | |||||
Extension character sheet | PC437(Standard Europe)Katakana/PC850(Multilingual)PC860(Portuguese) sheet PC863(Canadian-French/Pc865(Nordic)West Europe/GreekHebrew/East Europe/Iran/WPC1252/PC866(Cyrilic#2)/PC852(Latin2)/PC858/IranI/Latvian/Arabic/PT151(1251) | ||||
1D code | UPC-AUPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 | ||||
2D code | QR CODE/PDF417 | ||||
Power | |||||
Power adaptor | AC 100-240V/50~60Hz | ||||
Power source | DC 24V/2.5A | ||||
Cash drawer output | DC 24V/1A | ||||
Physical characteristics | |||||
Weight | 0.92 KG | ||||
Dimensions | 180*140*127mm | ||||
Reliability | |||||
Cutter life | 1.5 million cuts | ||||
Printer head life | 150KM | ||||
Driver | Windows /Linux |
