• Support printing with multiple materials
• Support IAP online upgrade

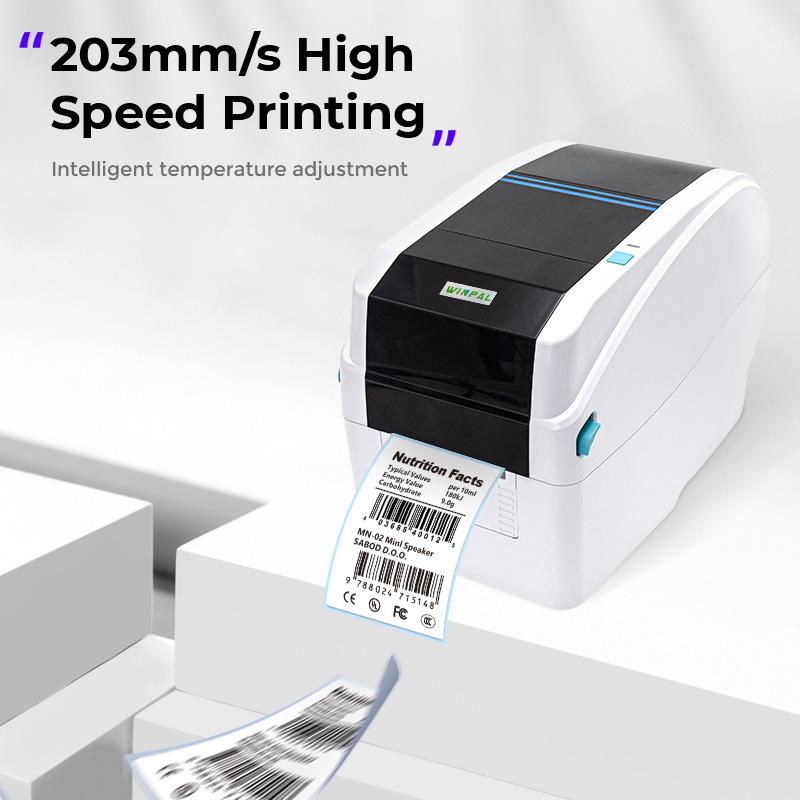

• 203mm/s and 152mm/s printing speed
• 127mm (5”) OD media capacity
| Model WP-V1 | WP-V2 | |
| Resolution | 203 DPI | 300 DPI |

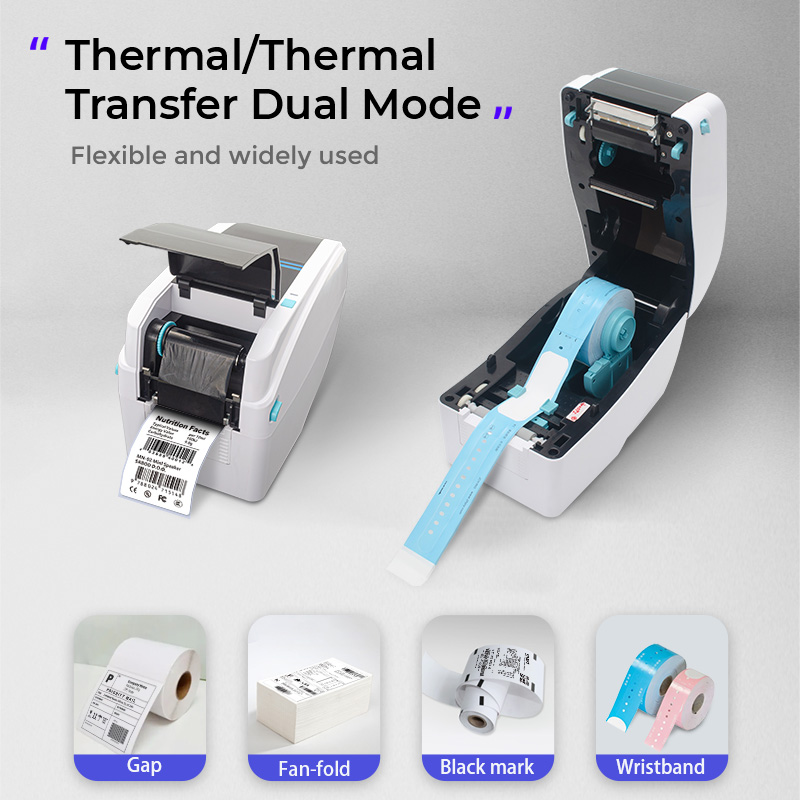

| Print Method | Thermal Transfer/Direct Thermal | |
| Print Speed | 203mm (8″) / s | 152mm (6″) / s |
| Max. Print Width | 56mm (2.2″) | 54mm (2.12″) |
| Max.print length | 1778mm (70″) | 889mm(35″) |
| Media | ||
| Media type | Continuous, gap, black mark, fan-fold and punched hole | |

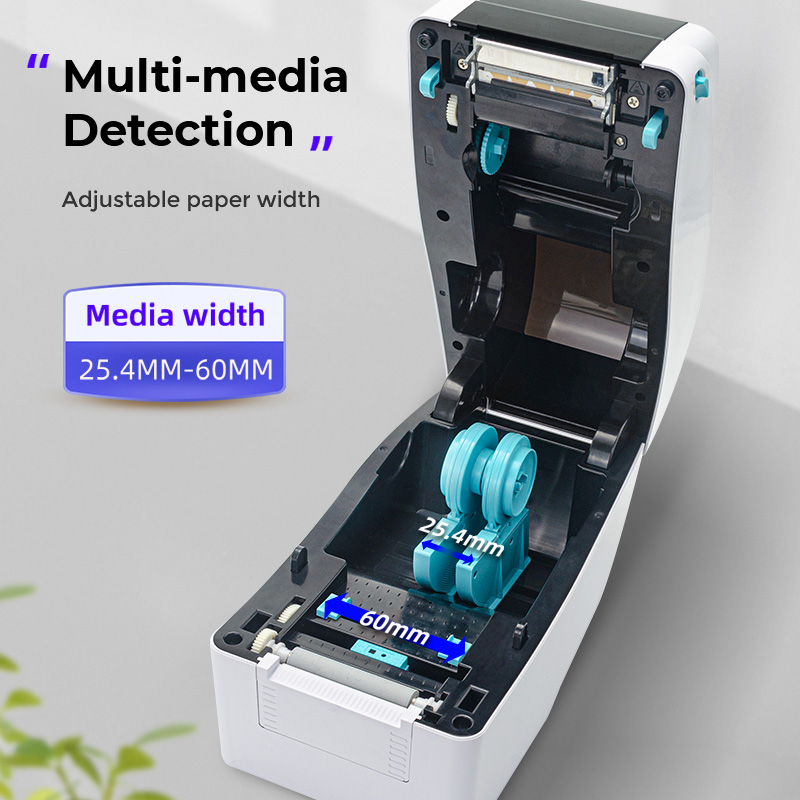

| Media width | 25.4~60mm(1.0″~2.3″) | |
| Media thickness |
0.06~0.254 mm | |
| Media core diameter | 25.4~76.2 (1″~3″) | |
| Labe llength | 10~1778 mm(0.39″ ~70″) | 10~889mm(0.39″~0.35″) |
| Label roll capacity | 127 mm (5″) OD (External Diameter) | |

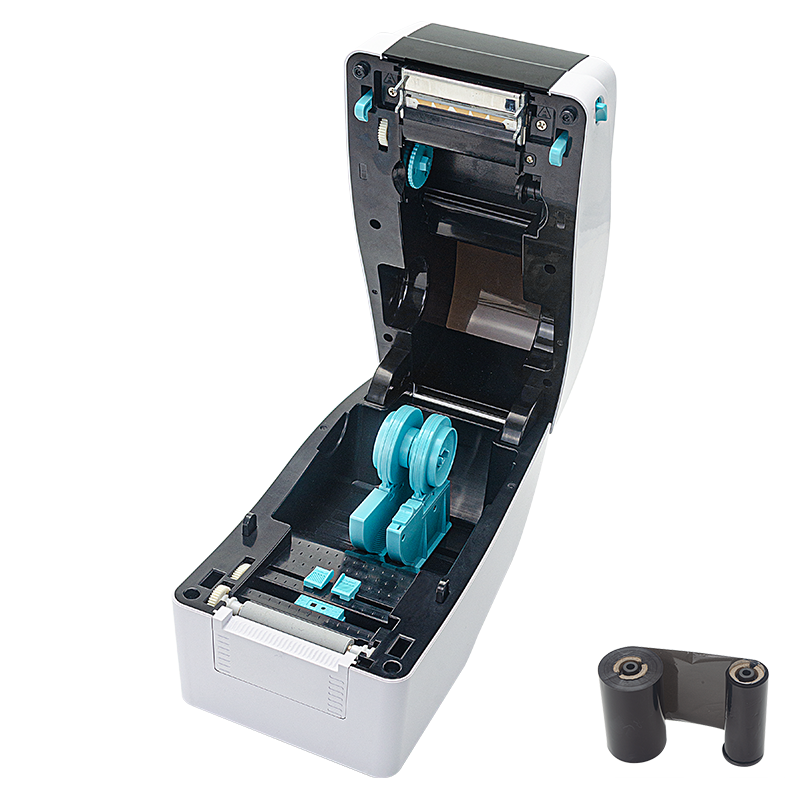

| Ribbon capacity | Max.110m | |
| Ribbon width | 60mm | |
| Performance Features | ||
| Processor | 32-bit CPU | |
| Memory | 8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded Max.4GB | |

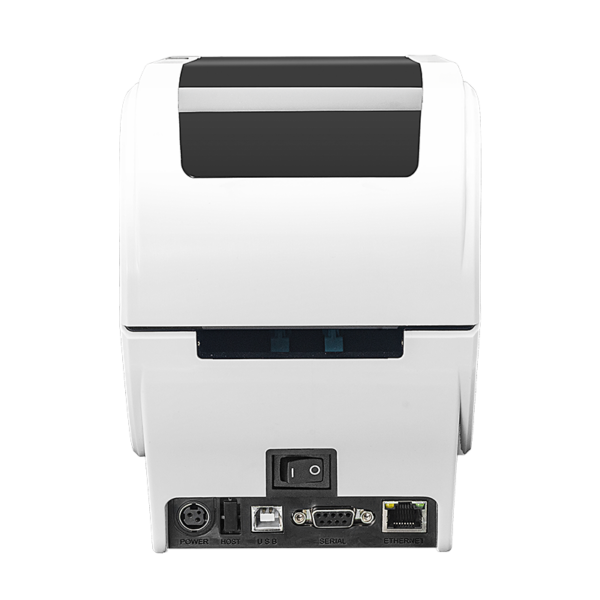

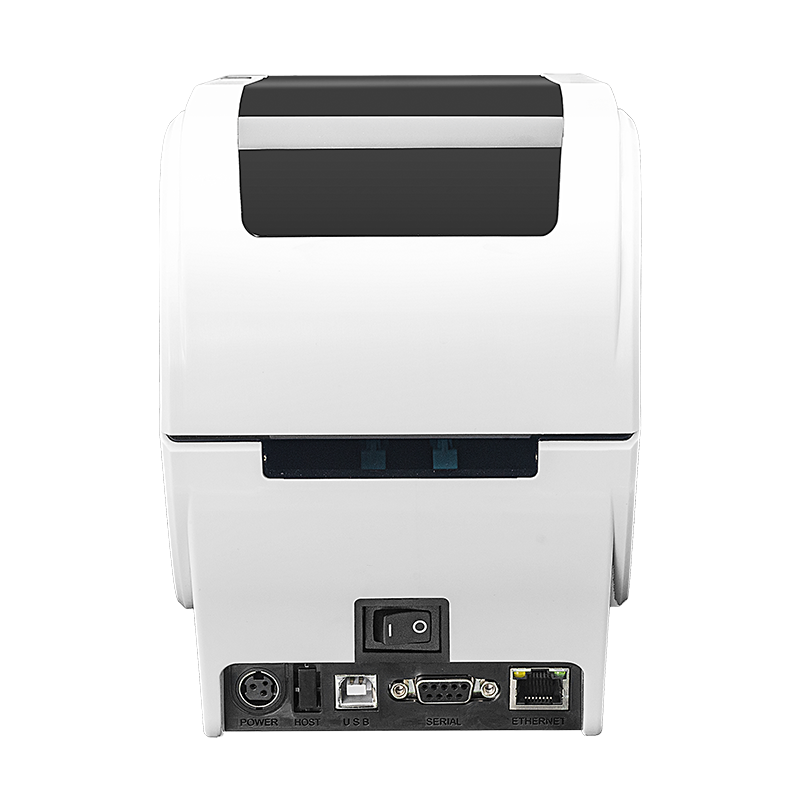

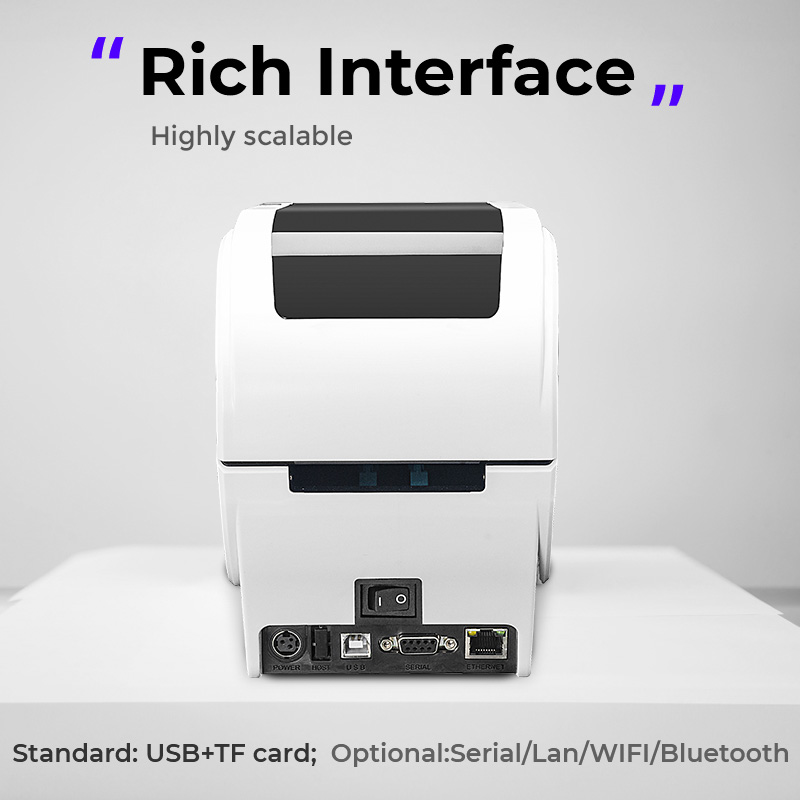

| Interface | USB+LAN; Optional:Serial/WIFI/Bluetooth | |
| Sensors | ①Gap sensor ②Cover opening sensor ③Black mark sensor ④Ribbon sensor | |
| Fonts/Graphics/Symbologies | ||
| Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. | |
| 1D Bar Codes | Code 39,Code 93, Code 128UCC,Code 128 subsets A, B,C,Codabar, Interleaved 2 of 5,EAN-8,EAN-13,EAN-128,UPC-A,UPC-E,EAN and UPC 2(5) digits add-on,MSI, PLESSEY, POSTNET, China POST, GS1 DataBar,Code 11 | |
| 2D Bar Codes | PDF-417,Maxicode,DataMatrix,QR code,Aztec | |
| Rotation | 0°、90°、180°、270° | |
| Emulation | TSPL、EPL、ZPL、DPL | |
| Physical Features | ||
| Dimension | 246 mm x140 mmx170 mm (D x W x H) | |
| Weight | 1.65Kg | |
| Reliability | ||
| Print head life | 30 km | |
| Software | ||
| Driver | Windows/Linux/Mac/Android/Chrome OS | |
| SDK | Windows/Linux/Android/iOS | |
| Software | Bartender UItraLite/Mobile Label Design App | |
| Power supply | ||
| Input | AC 100-240V,1.5A,50-60Hz | |
| Output | DC 24V/2.5A, 60W | |
| Options | ||
| Factory Options | ① WiFimodule ②Lan module ③Bluetooth module ④Serial module | |
| Dealer Options | ①External paper rollholder and 1 “paper roll disengage ② Cutter ③disengage | |
| Environmental Conditions | ||
| Operation | 5~40°C(41~104°F), Humidity:25~85% non-condensing | |
| Storage environment | -40~60°C(-40~140°F), Humidity:10~90% non-condensing | |
